| Brand Name: | Kingrail |
| Model Number: | M6-M100 |
| MOQ: | Có thể đàm phán |
| giá bán: | Negotiable |

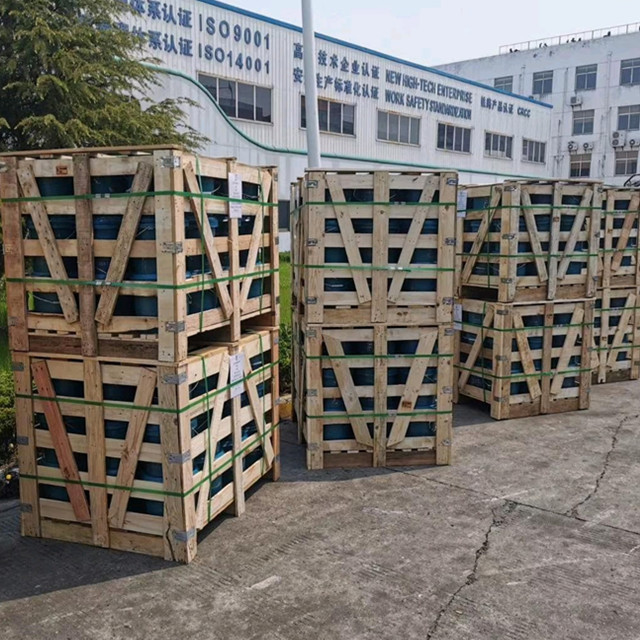

| Packaging Details: | 20-25kg/thùng + 900kg Palle |
Rail fish bolts are used to connect fish plates and rails. Kingrail Parts manufactures fish bolts using high quality steel and stainless steel.
Our fish bolts can meet international standards such as BS, ASTM and DIN. We can also customize fish bolts according to customer specifications and drawings.
Specifications:
| Railway Fish Bolt | ||||
|---|---|---|---|---|
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical properties | Tensile strength: ≥400Mpa | Tensile strength: ≥500Mpa | Tensile strength:≥800Mpa | Tensile strength: ≥1000Mpa |
| Yield strength:≥240Mpa | Yield strength:≥300Mpa | Yield strength:≥640Mpa | Yield strength:≥900Mpa | |
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% | |
|
Cold bending:
90 degree without crac
|
Cold bending:
90 degree without crac
|
Cold bending:
90 degree without crac
|
Cold bending:
90 degree without crac
|
|
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
| Standard refers | UIC864-2 | |||

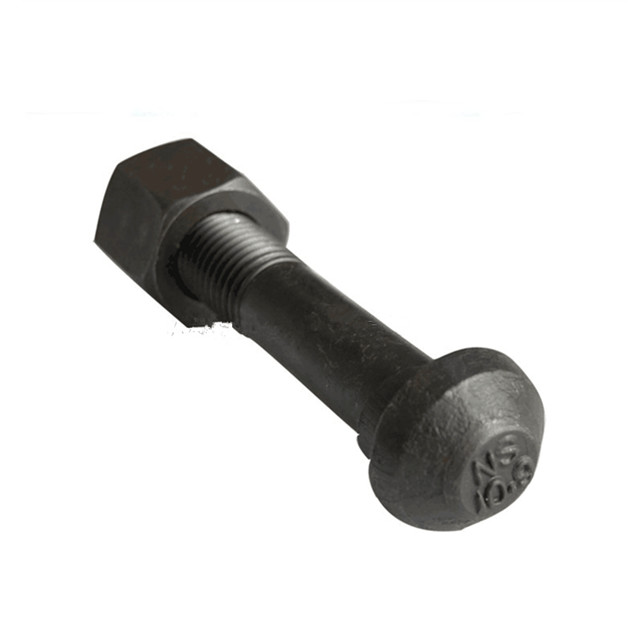

Button Head Oval Neck Fish Bolt
| Diameter | Length | Weight (Kg) |
|---|---|---|
| 1/2" | 1-3/4" | 0.097 |
| 1/2" | 2" | 0.10 |
| 1/2" | 2-1/4 | 0.112 |
| 5/8 | 2-1/2 | 0.183 |
| 3/4 | 3 | 0.328 |
| 3/4 | 3-1/2 | 0.339 |
| 3/4 | 4 | 0.356 |
| 7/8 | 4-1/2 | 0.559 |
| 7/8 | 5 | 0.593 |
| 1 | 5 | 0.8 |
| 1 | 5-1/2 | 0.839 |
| 1 | 6 | 0.879 |
| 1-1/16 | 6 | 0.995 |
| 1-1/8 | 6-1/2 | 1.186 |
Diamond Neck Fish Bolt
| Diameter | Length | Weight (Kg) |
|---|---|---|
| 7/8 | 4-1/2 | 0.563 |
| 7/8 | 5-1/2 | 0.651 |
| 1 | 5-1/4 | 0.889 |
| 1 | 5-3/4 | 0.895 |
| Note: All fish bolt dimensions given in inches. | ||
Contact Us
Please contact us for more information and quotation.
|
